No English translated scan for this page yet, showing original.
Section navigation

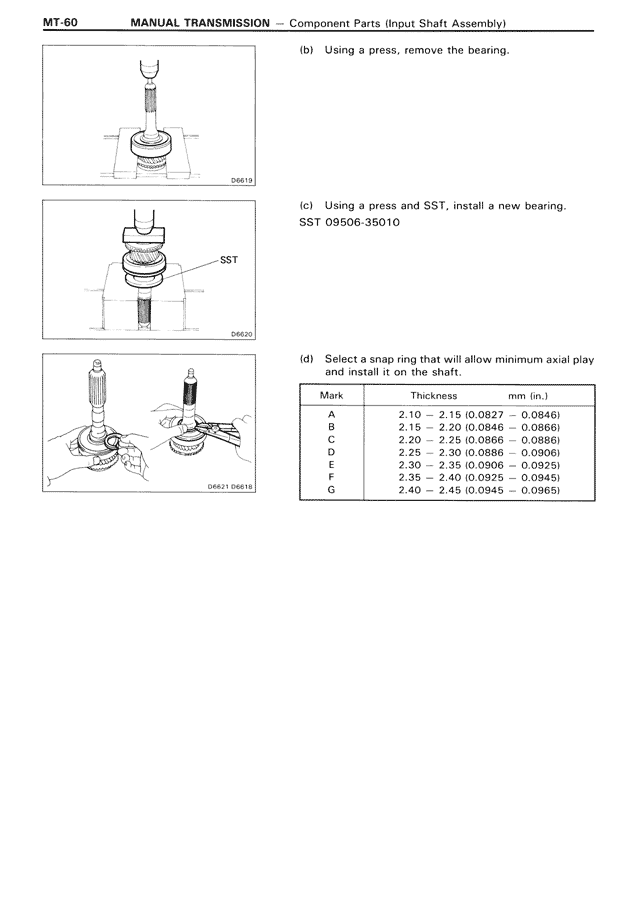

86 pages · currently page 60.
Examples: 5 or -05.
Compare pages
Save pages while browsing, then open two side by side.
Select two saved pages in the list.
Section index
Index
MT-01
DESCRIPTION
MT-02
PRECAUTIONS
MT-03
TROUBLESHOOTING
MT-03
REMOVAL AND INSTALLATION OF TRANSMISSION
MT-04
Removal of Transmission
MT-04
Installation of Transmission (W58 TRANSMISSION)
MT-06
Components
MT-09
DISASSEMBLY OF TRANSMISSION
MT-11
COMPONENT PARTS
MT-19
Input Shaft Assembly
MT-19
Output Shaft Assembly
MT-21
Counter Gear and Reverse Idler Gear
MT-28
Front Bearing Retainer
MT-33
Extension Housing
MT-34
ASSEMBLY OF TRANSMISSION (R154 TRANSMISSION)
MT-37
Components
MT-49
DISASSEMBLY OF TRANSMISSION
MT-51
COMPONENT PARTS
MT-59
Input Shaft Assembly
MT-59
Output Shaft Assembly
MT-61
Counter Gear and Reverse Idler Gear
MT-69
Front Bearing Retainer
MT-72
Extension Housing
MT-73
ASSEMBLY OF TRANSMISSION
MT-76
