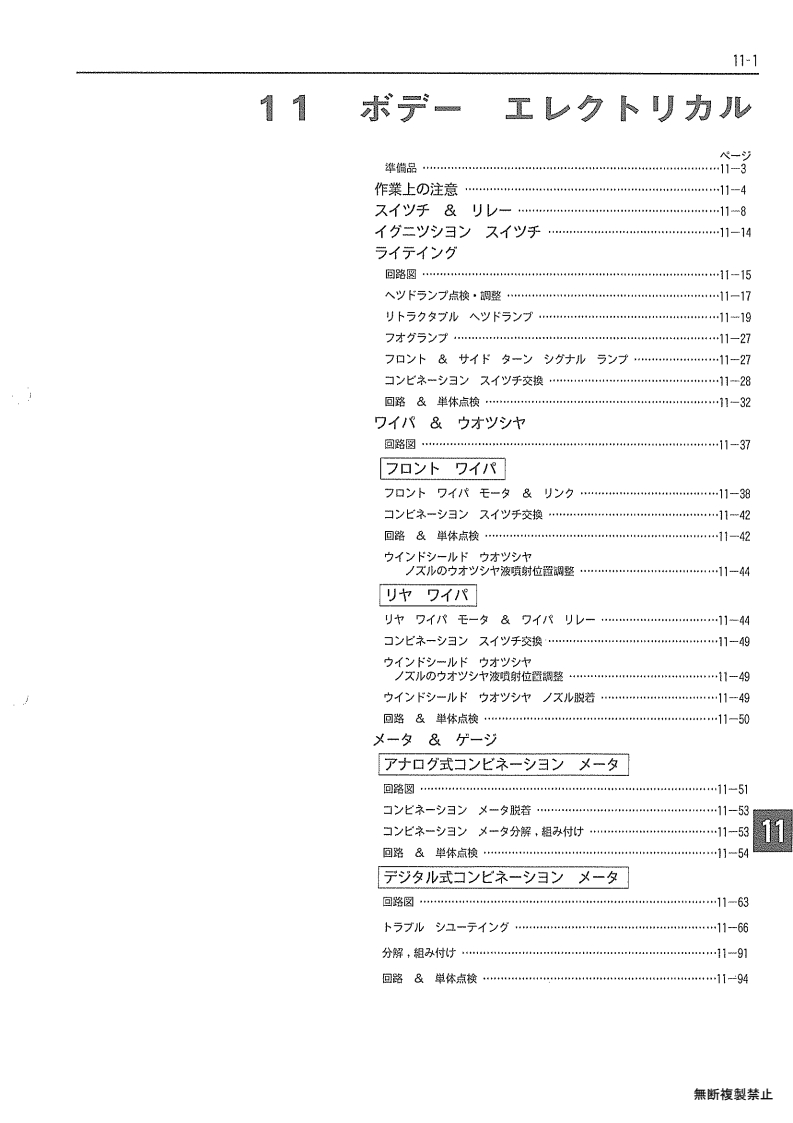

Section index
Preparation items
11_3
Precautions while working
11_4
Switch & Relay
11_8
Ignition switch
11_14
Lighting
11_15
Circuit diagram
11_15
Headlamp inspection and adjustment
11_17
Retractable headlamps
11_19
Fog lamp
11_27
Front & Side Turn Signal Lamps
11_27
Combination switch replacement
11_28
Circuit & unit inspection
11_32
Wiper & Washer
11_37
Circuit diagram
11_37
Front wiper
11_38
Front wiper motor & linkage
11_38
Combination switch replacement
11_42
Circuit & unit inspection
11_42
Windshield Washer
11_44
Adjusting the nozzle washer fluid spray position
11_44
Rear wiper
11_44
Rear wiper motor & wiper relay
11_44
Combination switch replacement
11_49
Windshield washer nozzle removal and installation
11_49
Circuit & unit inspection
11_50
Meters & gauges
11_51
Analog combination meter
11_51
Circuit diagram
11_51
Combination meter removal and installation
11_53
Combination meter disassembly and assembly
11_53
Circuit & unit inspection
11_54
Digital combination meter
11_63
Circuit diagram
11_63
Troubleshooting
11_66
Disassembly and assembly
11_91
Circuit & unit inspection
11_94
