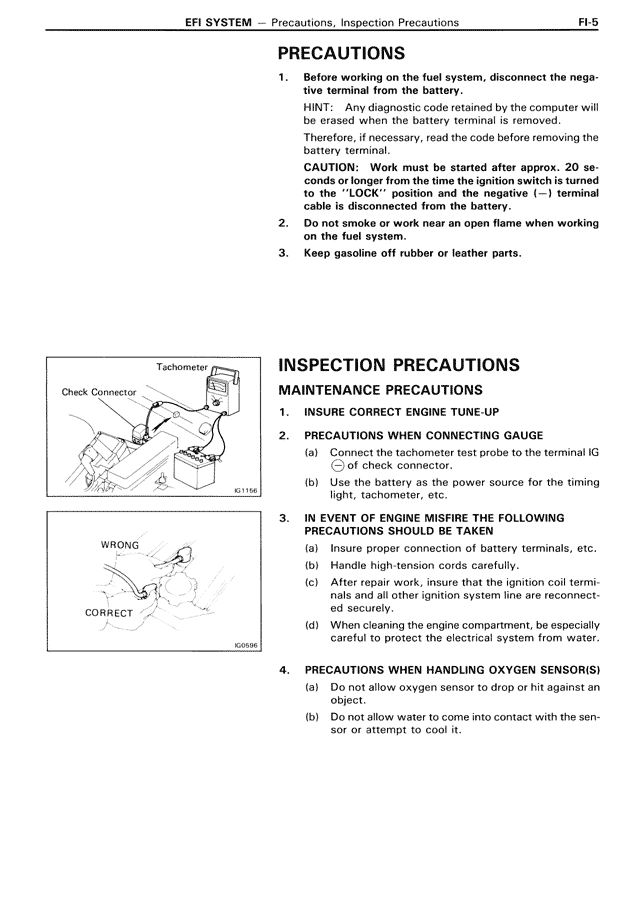

FI-005 PRECAUTIONS, INSPECTION PRECAUTIONS
Page 5 of 126 in this section.
No English translated scan for this page yet, showing original.
